Dew Point & Measurement
These products ensure peace of mind to thousands of customers around the world.
Trace moisture measurement is essential for ensuring quality, safety and efficiency in thousands of applications across a wide range of industries. Water vapour is a serious contaminant in many processes, having a detrimental effect on the quality and integrity of final products. Water dew point is a specific category of moisture measurement and is the most common parameter selected when condensation or ice formation is to be avoided.
Our wide range of instruments are designed by Michell Instruments and other PST brands for trace moisture and dew point measurement/analysis for several applications. Including applications for trace humidity range from medical breathing air and monitoring industrial dryers through to monitoring the dew point in natural gas to ensure it complies with international quality standards.
Read our article on how dew point affects industrial processes. Use our free humidity & dew point calculator for easy dew point calculations and humidity conversions or download our free dew point chart over ice and water.
Dew-Point Transmitters or Sensors

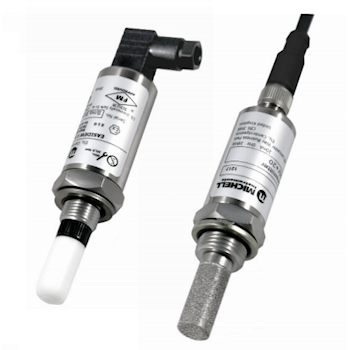

Dew-Point Transmitter - Michell Easidew EA2
- Measurement ranges -110 up to +20°Cdp
- Dew point or ppmV moisture content output
- Accuracy ±2 °Cdp
- Traceable calibration certificate
- Easidew I.S. IECEx, cQPSus, ATEX and UKCA approvals
- Low cost of ownership and easy maintenance with sensor exchange program
- 316 Stainless steel sensor and sample blocks
- 5/8” UNF, 3/4” UNF, G 1/2” process connections
- MiniDIN 43650, M12 electrical connectors

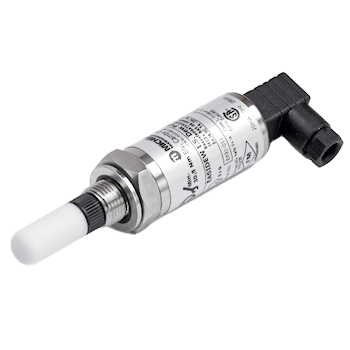

Intrinsically Safe Dew-Point Transmitter - Easidew I.S.
- Measurement ranges -110 up to +20 °Cdp
- Dew point or ppmV moisture content output
- 2-wire loop power connection
- Accuracy ±2 °Cdp
- Traceable calibration certificate
- Easidew I.S. IECEx, cQPSus, ATEX and UKCA approvals
- Low cost of ownership and easy maintenance with sensor exchange program
- 316 Stainless steel sensor and sample blocks
- 5/8” UNF, 3/4” UNF, G 1/2” process connections
- KF40 Glove box flange
- Oxygen service cleaned

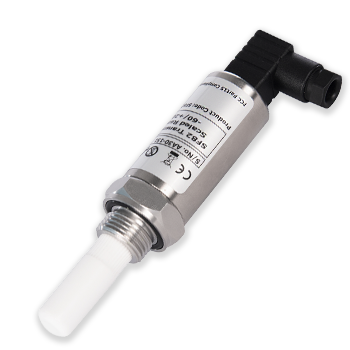

Dew-Point Transmitter for Compressed Air Dryers - SF82
- Dew point or ppmV moisture content output
- Accuracy ±2 °C (±3.6 °F) dew point
- MiniDIN 43650 C, M12 electrical connectors
- Traceable 9-point calibration certificate
- Modbus RTU over RS485 digital communication
- 4…20 mA 2 wire
- Power supply 5…28 V DC
- Ultra-fast response to moisture change
- Low cost of ownership and easy maintenance with sensor exchange program
- 316 stainless steel sensor and sample blocks
- 5/8” UNF, 3/4” UNF, G 1/2” process connections
- KF40 Glove Box flange

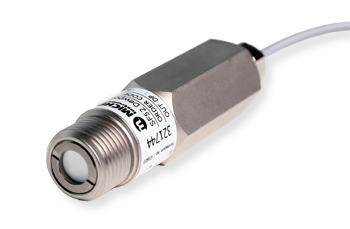

Dew-Point Transmitter for Industrial Dryers - SF52
- Ideal for OEM dryer use
- Dew-point measurement range -40 to +60 °C (-40 to +140 °F)
- Fast response
- Rugged IP65 construction
- 3-Point traceable calibration certificate
- Accuracy ±2°C (±3.6°F)
- Voltage or mA outputs

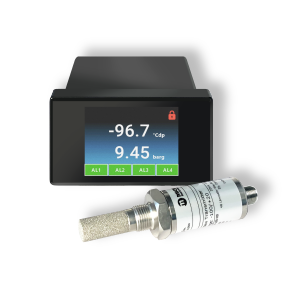

Dew-Point Hygrometer - Michell Easidew Advanced Online
- Measurement range -110…+20 °C (-166…+68 °F) dew point
- Dew point or moisture content output
- Accuracy ±1 °C (±1.8 °F) dew point
- Pressure indication and compensation
- Touch screen reconfiguration
- 3 x 4…20 mA outputs and 4 relay outputs
- Modbus RTU over RS485 output
- Choice of AC or DC Power Supply
- Sample block and cable included
- Traceable 13-point calibration certificate

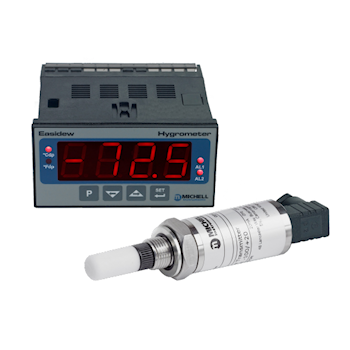

Dew-Point Hygrometer - Michell Easidew Online
- Measurement range -100 to +20 °C (-148 to +68 °F) dew point
- Dew point or ppmV moisture content output
- Accuracy ±2 °C (±3.6 °F) dew point
- 4 to 20 mA output
- Modbus RTU over RS485 output
- Dual configurable alarm outputs
- Choice of AC or DC Power Supply
- Sample block and cable included
- Traceable 13-point calibration certificate

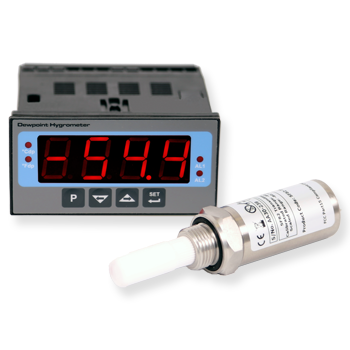

Fast-Response Dew-Point Hygrometer - Michell SF82 Online
- Measurement range -60 to +60 °C dew point
- Accuracy ±2 °C dew point
- 4 to 20 mA output
- Modbus RTU over RS485 output
- Dual configurable alarm outputs
- Sample block and cable included
- Traceable 9-point calibration certificate
- Ultra-fast response to moisture change

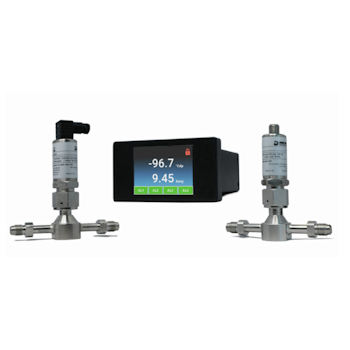

Ultra-Pure Moisture Hygrometers Michell Pura
- Measures down to -120 °Cdp (-184 °Fdp) (1 ppbV)
- Stable and repeatable measurement
- Fast response
- Economical and advanced monitor solutions
- Dew-point or moisture content output
- 4…20 mA and Modbus RTU over RS485 outputs
- Traceable 7-point calibration certificate
- 1/2”, 1/4” male VCR process connections
- MiniDIN 43650 C, M12 electrical connectors
- Optional hazardous area approval

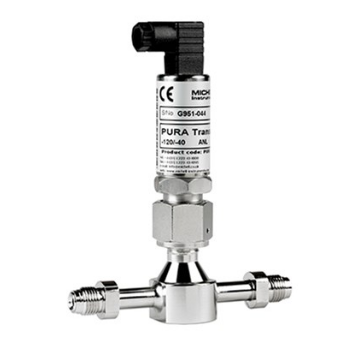

Trace Moisture Transmitter - Michell Pura
- Measures down to -120 °Cdp (-184 °Fdp) (1ppbV)
- Stable and repeatable measurement
- Fast response
- Modbus RTU over RS485 communication
- 4…20 mA 2 wire
- Traceable 7-point calibration certificate
- 1/2”, 1/4” male VCR process connections
- Optional monitor/controller
- MiniDIN 43650 C, M12 electrical connectors
- Optional hazardous area approval

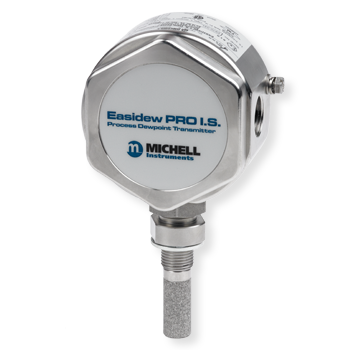

Transmitter for Moisture Analysis - Michell Easidew PRO I.S.
- Measurement range –110…+20 °Cdp
- ATEX, IECEx, UKCA, cQPSus, TR CU Ex certified
- Accuracy ±1 °Cdp
- 2-wire 4…20 mA output
- Traceable 13-point calibration certificate
- 450 barg pressure rating
- Alternative process connections available
- Material certification to BS EN 10204 3.1
- Moisture in gases and liquids
- Service exchange program
- Oxygen Service cleaned

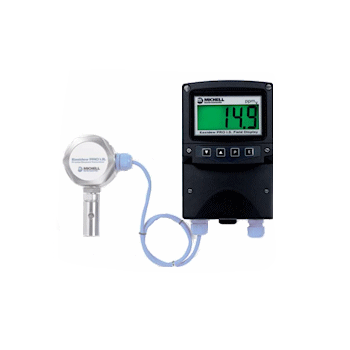

Michell Intrinsically Safe Field Display
- Loop powered 4-20mA indicator. Intrinsically safe certified with ATEX, IECEx, UKCA and FM
- Operating temperature between -40 and +70°C
- Bold 34mm high 4-digit display with optional backlight
- Robust GRP enclosure providing IP66 protection. Can be mounted by itself or inside a sampling system enclosure
- Built-in terminal compartment for easy wiring
- Two optional galvanically isolated solid-state alarm outputs

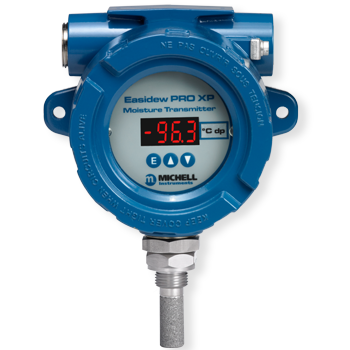

Explosion Proof Moisture Transmitter - Easidew PRO XP
- Measurement ranges -110 up to +20 °Cdp (-166 to 68 °Fdp)
- Global explosion / flameproof certification
- Accuracy ±1 °Cdp (±1.8 °Fdp)
- 2-wire 4…20 mA output
- Traceable 13-point calibration certificate
- 450 bar (6527 psi) pressure rating
- Low cost of ownership and easy maintenance with sensor
exchange program - 3/4” UNF industry standard process connection
- EN 10204 3.1 material certification
- Moisture in gases and liquids
- Integral display meter
- Oxygen service cleaned

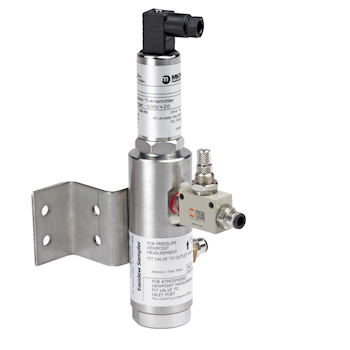

Self-Contained Sampling System - Michell Easidew Sampler
- Universal configuration for atmospheric or line pressure dew-point measurements
- Integral particulate filter
- Metering valve for flow control
- Single block design for faster measurement response
- Gas pressure to 1 MPa (10 barg) with a high-pressure option to 21 MPa (210 barg) available

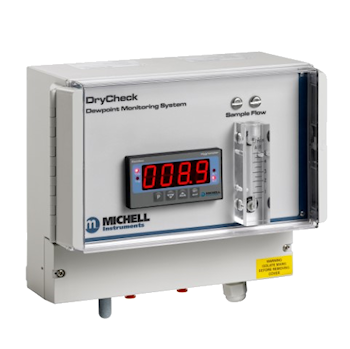

Self-Contained Hygrometer- Michell Drycheck
- Integrated instrument and sampling system
- Simple installation
- Wide measurement range
- Dew point or moisture content
- Analog output, display and dual alarms
- IP65 (NEMA 12) enclosure

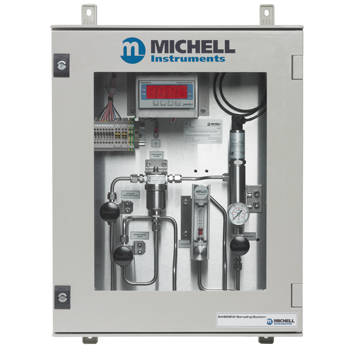

Compact Sampling System - Michell ES20
- Process connection via 6mm or 1/4” tube fittings
- Dew point, moisture content, flow, contamination and pressure control
- Sample inlet pressure up to 20 barg
- Modular design
- Stainless steel tubing and fittings
- Flexible filtration options
- High quality components
- Designed for challenging process environments
- Compatible with various transmitters or hygrometers
- Optional displays

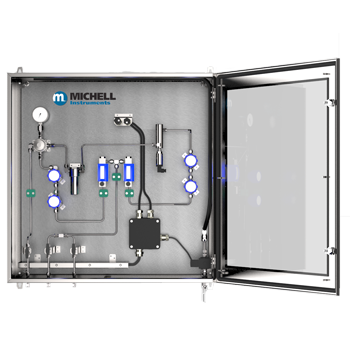

Process Sampling System - Michell ES70
- Indoor panel or outdoor enclosure mounting options
- Process connection via 6mm or 1/4” tube fittings
- High quality components, stainless steel tubing and fittings
- Sample inlet pressure up to 138 barg
- Flexible filtration options
- Choice of transmitter, flow and pressure control
- Comprehensive documentation options with BS EN 10204 3.1 certification and NACE MR0175 available

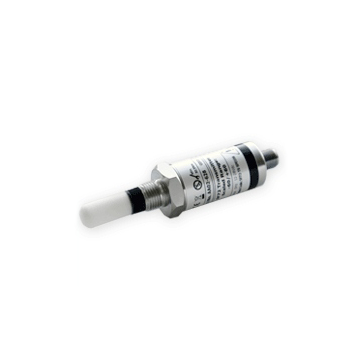

Rail Dew-Point Transmitter - Michell SF72 Rail
- M12 electrical connector
- Dew-point measurement range –60 to +60 °Cdp (-76 to +140°Fdp)
- Fast response
- 316 stainless steel IP66 construction
- Traceable calibration certificate
- Accuracy ±2°Cdp (±3.6°Fdp)
- G 1/2” BSP process connection

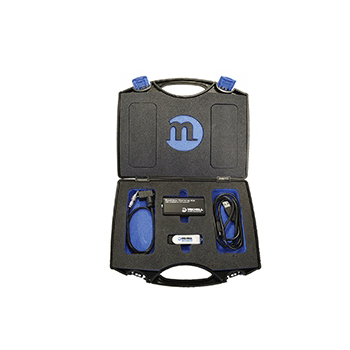

Diagnostic Communication Tool for Michell Easidew and Pura
- Simple to use: connects to a PC via USB
- No additional power source required: transmitters are powered via USB from the PC
- Application software is included and supports all Michell Pura and Easidew dew-point transmitters
- Digitally display moisture and temperature readings
- Reconfigure transmitter output units, range and fault settings
Dew-Point Transmitters or Sensors

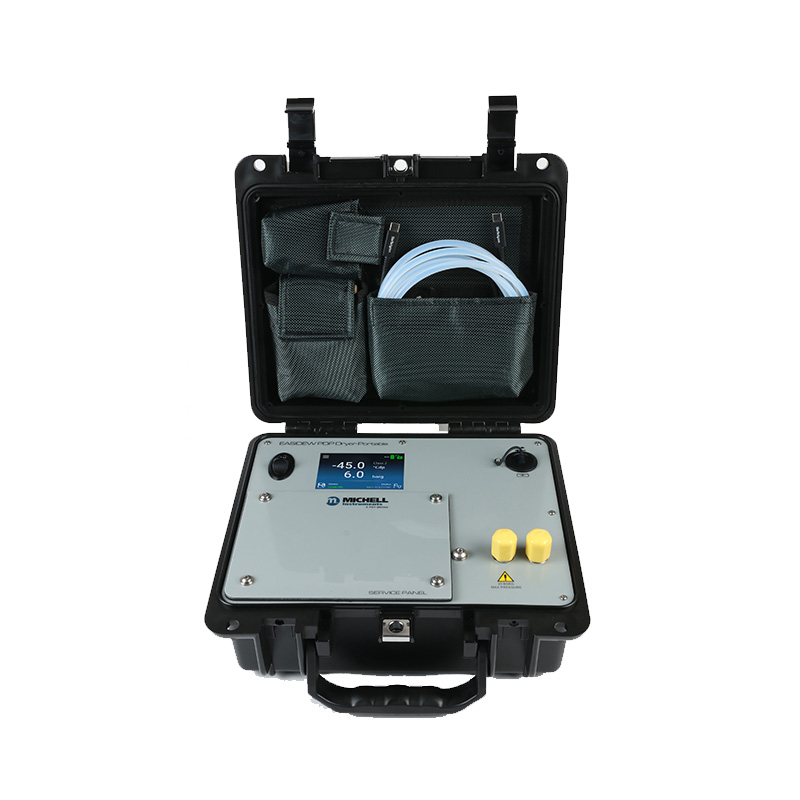

Compressed Gas Dew Point Meter - Easidew PDP Dryer Portable
- Air-quality compliance to ISO 8573-1 Class 1–4
- Pressure dew-point monitoring to 20 barg
- Multi-parameter datalogging/downloading
- Touchscreen user-friendly interface
- Dew-point and pressure dryer outlet graphing
- Rugged construction for tough field conditions
- Designed for high electrical noise environments
- Integrated self-contained travel case
- Easy to maintain
- Battery life of two working days

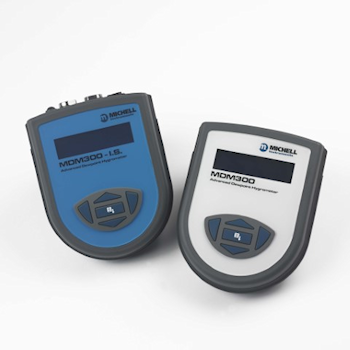

Portable Dew-Point Hygrometer - Michell MDM300 Series
- Repeatedly fast measurements at low pressure from less than 15 minutes for T95 to -60 °C (-76 °F)
- Higher pressure measurements possible – up to 350 barg (5076 psig)
- Long battery life: up to 48 hours of typical use between charges
- Intuitive application kits allow quick and straightforward connection to your sample point
- Durable, yet easy to handle and operate: designed for use in industrial environments
- Lightweight: less than 1.5 kg (3.3 lb)
- 13-point traceable calibration certificate

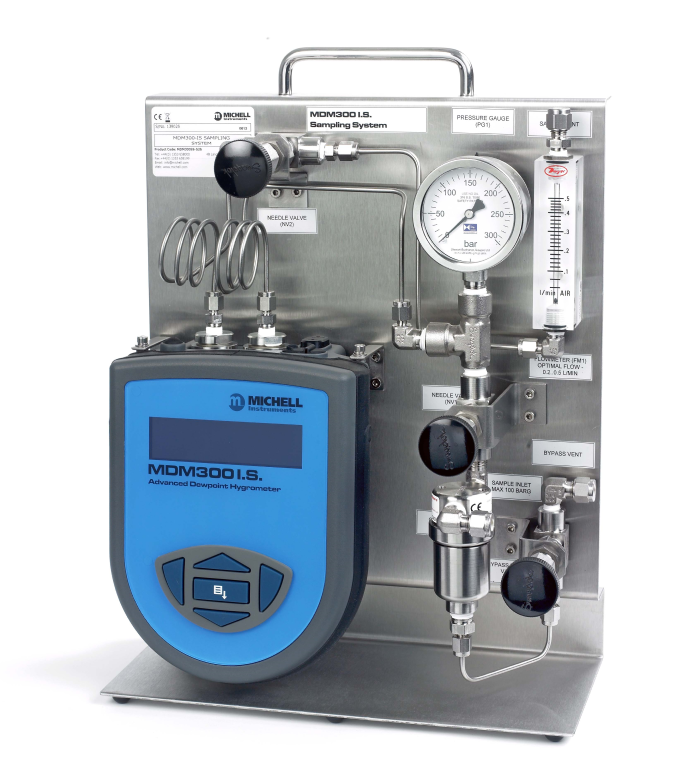

MDM300 Sampling Options
- MDM300 is mounted onto sampling system, so no installation is required to make a measurement – connect the system to the sample collection point and measure
- Gauge for monitoring sample pressure and flow control valves included
- Simple access for maintenance and replacement of filter elements
- Optional transportation case, to protect panel against damage in transit
Precision Chilled Mirror Reference Hygrometers

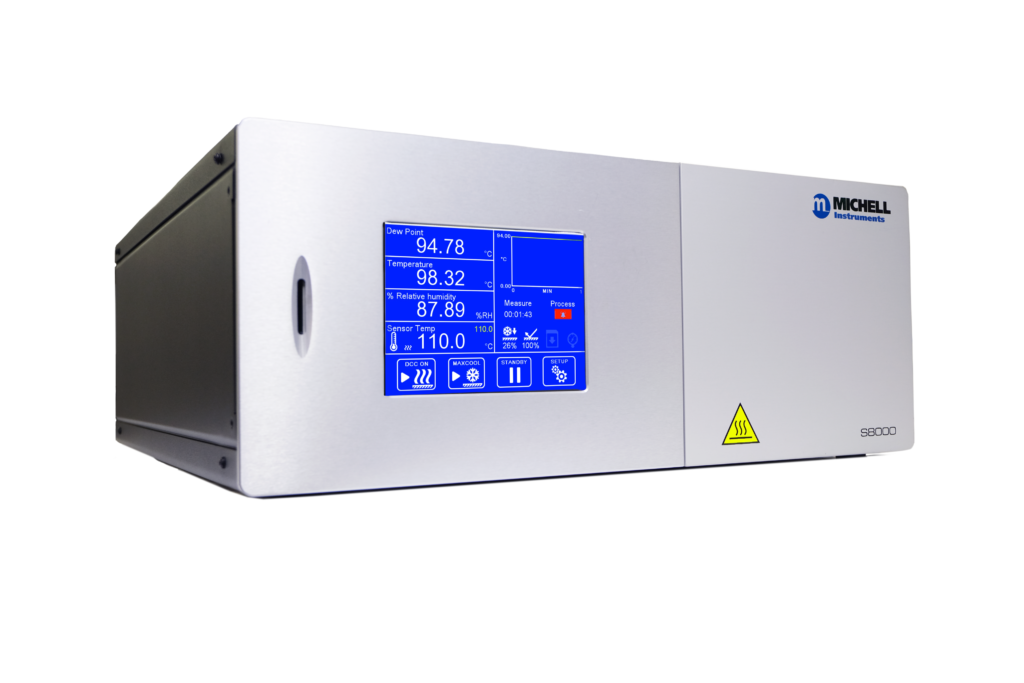

High-Temperature Chilled Mirror Hygrometer - Michell S8000 HT
- Accuracy of ±0.1 °C (±0.18 °F)
- Precision measurement to -30 °C to +95 °C (-22 °F to +203 °F) dew point
- ±0.05 °Cdp (±0.09 °Fdp) stability
- ±0.05 °Cdp (±0.09 °Fdp) reproducibility
- External PRT for RH measurements
- Simple configuration and operation via touchscreen interface
- Compact 19 in x 4U package for flexibility of installation
- USB + Ethernet or RS485 connections
- SD card datalogging
- Supplied with 2 m Heat Trace Lines

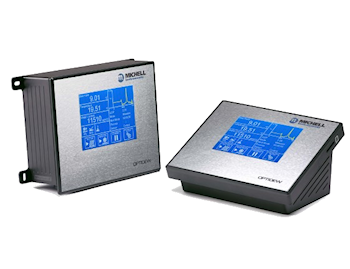

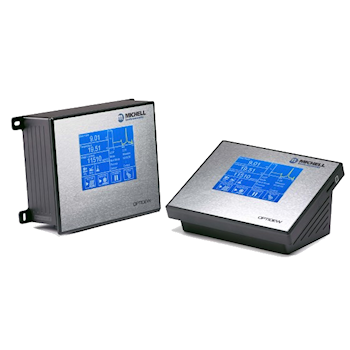

Industrial Grade Chilled Mirror Hygrometer - Michell Optidew
- New chilled mirror hybrid sensor gives fast dynamic response to changes in humidity
- Accurate to ±0.15°C dew point, ±0.1°C temperature
- Wide measurement range from -40 to +120°C dew point
- Choice of communication methods, including Modbus TCP over Ethernet communication for easy networking
- Optional pressure transmitter for accurate calculation of ppmV & g/kg

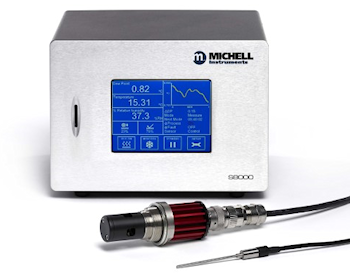

Chilled Mirror Hygrometer - Michell S8000 Remote
- Fundamental, accurate and low-drift measurement
- Remote sensor
- Open design allows remote sensor to be mounted into a sample flow or simply placed in an environment to be monitored
- -40 to +120°C dew-point range with ±0.1°C accuracy
- Data logging via USB, Ethernet or SD card
- ‘FAST’ guarantees frost formation below 0°C
- Sensor operates in pressures up to 20 barg

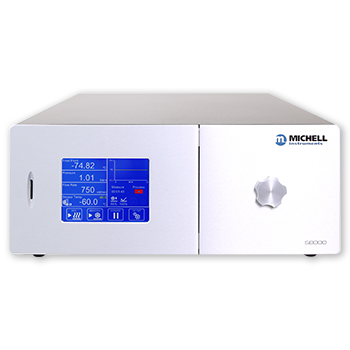

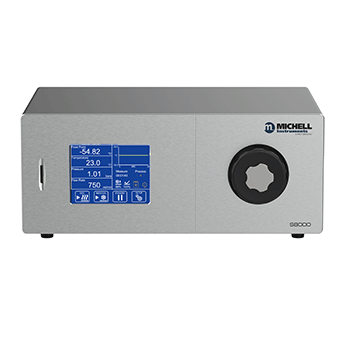

Precision Chilled Mirror Hygrometer - Michell S8000
- ±0.1 °Cdp (±0.18 °Fdp) accuracy
- Fundamental, accurate and low-drift measurement
- Simple configuration and operation via touchscreen interface
- Precision measurements to –60 °C (–76°F) dew point
- FAST – guaranteed frost formation below 0 °C (+32 °F)
- Measure at pressures up to 2 MPa (20 barg)
- USB and Ethernet connectivity
- Datalogging to SD card or via digital comms

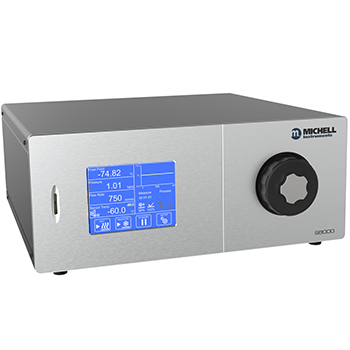

High-Precision Chilled Mirror Hygrometer Michell S8000 RS
- Accuracy of ±0.1 °C (±0.18 °F)
- Precision measurement to -90 °C (-130 °F) frost point (95.4 ppbV) with no need for additional cooling
- ±0.05 °Cdp (±0.09 °Fdp) stability at -90 °Cfp (-130 °Ffp)
- ±0.05 °Cdp (±0.09 °Fdp) reproducibility at -90 °Cfp for S8000 RS -90;
±0.025 °Cdp (±0.045 °Fdp) reproducibility at -80 °Cfp for S8000 RS -80 - Simple configuration and operation via touchscreen interface
- Sensor optimized for fast response to low moisture levels
- Microscope for visual inspection of condensate on mirror
- Compact 19″ x 4U package for flexibility of installation
- Ethernet or USB connections
- SD card datalogging
High Precision Chilled Mirror Hygrometer – Michell S8000 -100
- Accuracy of ±0.1 °C (±0.18 °F)
- Precision measurement to -100 °C (-148 °F) frost point (13.8 ppbV) with no need for additional cooling
- Reproducibility of ±0.15 °C (±0.27 °Ffp) at -100 °C (-148 °Ffp) frost point
- Simple configuration and operation via touch screen interface
- Sensor optimized for fast response to low moisture levels
- External 4-wire Pt100 connections
- Microscope for visual inspection of condensate on mirror
- Compact 19” x 4U package for flexibility of installation
- Ethernet or USB connections
- SD card data logging
Field Engineering Services for Michell Process Analyzers and Systems
Regular service and maintenance extends the life of your moisture or hydrocarbon dew-point analyzer and keeps it working accurately and efficiently for years, no matter what is the application. At Michell Instruments we are committed to help with on-site commissioning, installation, operator training, routine maintenance or in the unlikely event of sudden failure, with rapid repair of our dew point and trace moisture analyzers.
Remote location? No problem.
We’ve been commissioning, testing and maintaining the operation of our process moisture analyzers and systems for decades. With thousands of analyzers installed around the world from the frozen wastes of the Arctic Circle to the burning heat of sub-Saharan Africa, location is no problem. Our experienced field service engineers are committed to support our customers onsite in both onshore and offshore operations.
Humidity and Temperature Calibration

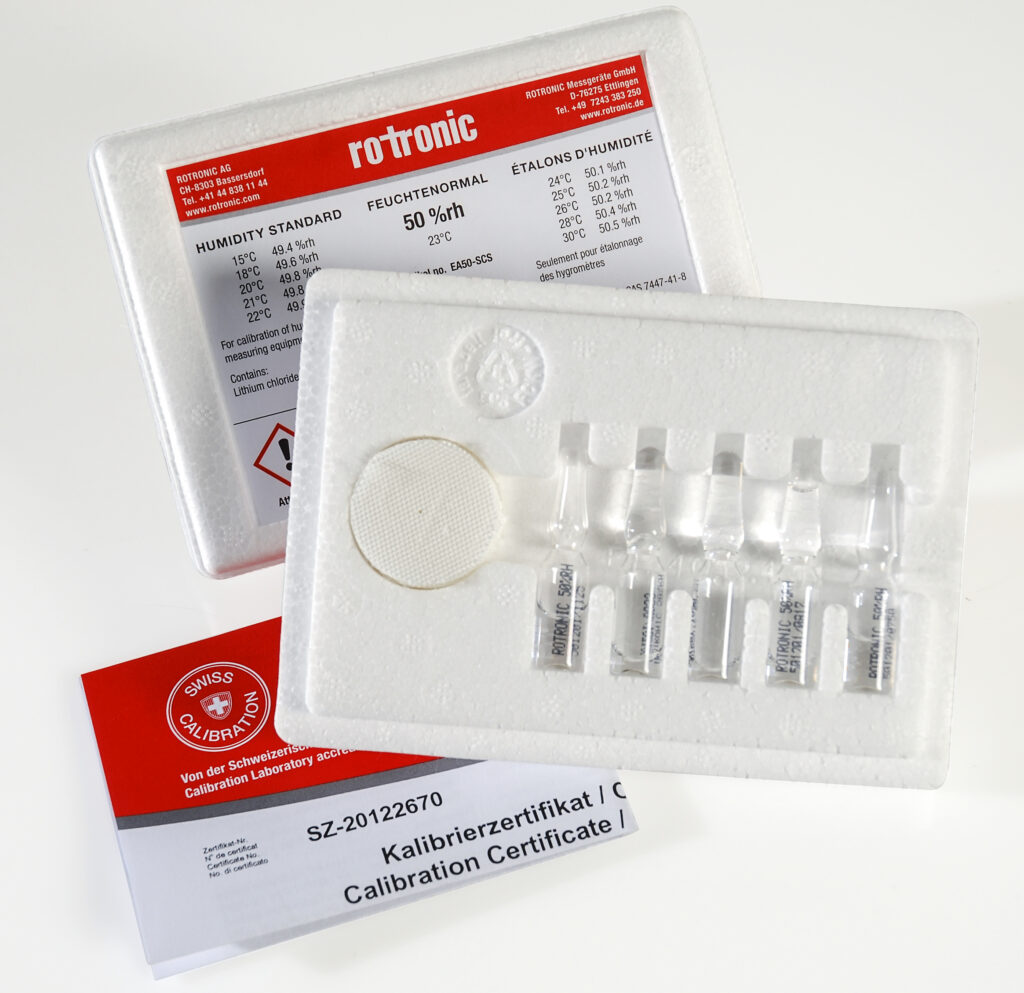

Humidity Standards and Calibration Devices - Rotronic
- Traceable to national standard
- Inexpensive calibration on site
- Simple and safe use
- Unlimited lifetime as long as the glass ampoules are kept sealed
High-Temperature Chilled Mirror Hygrometer - Michell S8000 HT
- Accuracy of ±0.1 °C (±0.18 °F)
- Precision measurement to -30 °C to +95 °C (-22 °F to +203 °F) dew point
- ±0.05 °Cdp (±0.09 °Fdp) stability
- ±0.05 °Cdp (±0.09 °Fdp) reproducibility
- External PRT for RH measurements
- Simple configuration and operation via touchscreen interface
- Compact 19 in x 4U package for flexibility of installation
- USB + Ethernet or RS485 connections
- SD card datalogging
- Supplied with 2 m Heat Trace Lines
Industrial Grade Chilled Mirror Hygrometer - Michell Optidew
- New chilled mirror hybrid sensor gives fast dynamic response to changes in humidity
- Accurate to ±0.15°C dew point, ±0.1°C temperature
- Wide measurement range from -40 to +120°C dew point
- Choice of communication methods, including Modbus TCP over Ethernet communication for easy networking
- Optional pressure transmitter for accurate calculation of ppmV & g/kg
Chilled Mirror Hygrometer - Michell S8000 Remote
- Fundamental, accurate and low-drift measurement
- Remote sensor
- Open design allows remote sensor to be mounted into a sample flow or simply placed in an environment to be monitored
- -40 to +120°C dew-point range with ±0.1°C accuracy
- Data logging via USB, Ethernet or SD card
- ‘FAST’ guarantees frost formation below 0°C
- Sensor operates in pressures up to 20 barg

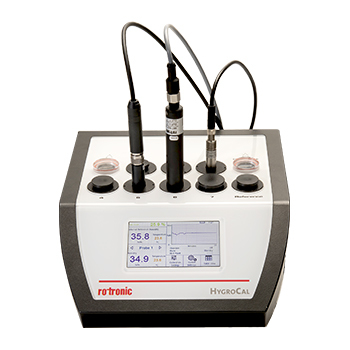

Humidity Generator - Rotronic HygroCal100 Advanced
- HC2A-S as reference probe and calibration of 7 probes simultaneously
- Truly portable at 3.2kg, and completely self-contained
- Intuitive user interface makes automating probe verification simple
- Integral battery pack means validation can be done without access to services
- Automated validation procedures for complete hands-off probe verification
- Internal calibration correction cycle ensures continued confidence
Precision Chilled Mirror Hygrometer - Michell S8000
- ±0.1 °Cdp (±0.18 °Fdp) accuracy
- Fundamental, accurate and low-drift measurement
- Simple configuration and operation via touchscreen interface
- Precision measurements to –60 °C (–76°F) dew point
- FAST – guaranteed frost formation below 0 °C (+32 °F)
- Measure at pressures up to 2 MPa (20 barg)
- USB and Ethernet connectivity
- Datalogging to SD card or via digital comms

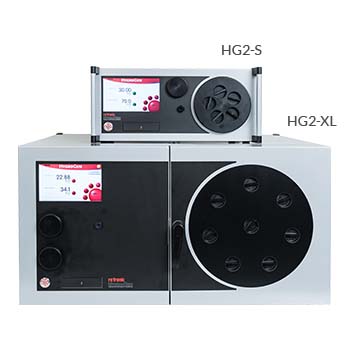

RH and Temperature Probe Calibrator - Rotronic HygroGen 2
- Generates stable humidity 2…99 % RH and temperature -5…60 ° conditions (<±0.1 %RH, <±0.01 °C)
- Humidity and temperature changes in less than 5 min
- Time-saving multiply probes calibration
- User programmable calibration sequence with up to 200 steps
- Automatic calibration AutoCal (optional)
Discover new functionality: Time-Saving and measurable Efficiency - FDA 21 CFR part 11 compliant with Rotronic HW4 software
High-Precision Chilled Mirror Hygrometer Michell S8000 RS
- Accuracy of ±0.1 °C (±0.18 °F)
- Precision measurement to -90 °C (-130 °F) frost point (95.4 ppbV) with no need for additional cooling
- ±0.05 °Cdp (±0.09 °Fdp) stability at -90 °Cfp (-130 °Ffp)
- ±0.05 °Cdp (±0.09 °Fdp) reproducibility at -90 °Cfp for S8000 RS -90;
±0.025 °Cdp (±0.045 °Fdp) reproducibility at -80 °Cfp for S8000 RS -80 - Simple configuration and operation via touchscreen interface

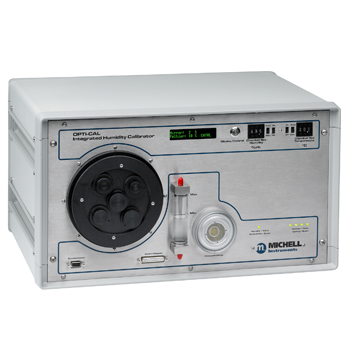

Humidity and Temperature Probe Calibrator - Michell OptiCal
- Simple operation and maintenance
- Easy calibration of relative humidity sensors
- Excellent chamber stability and uniformity
- Manual control or optional straightforward automated set point programming
- Humidity and temperature-controlled chamber
- Generate 10 to 90% RH over +10 to +50°C temperature
- Built in precision chilled mirror reference instrument
- Transportable to allow on-site calibrations

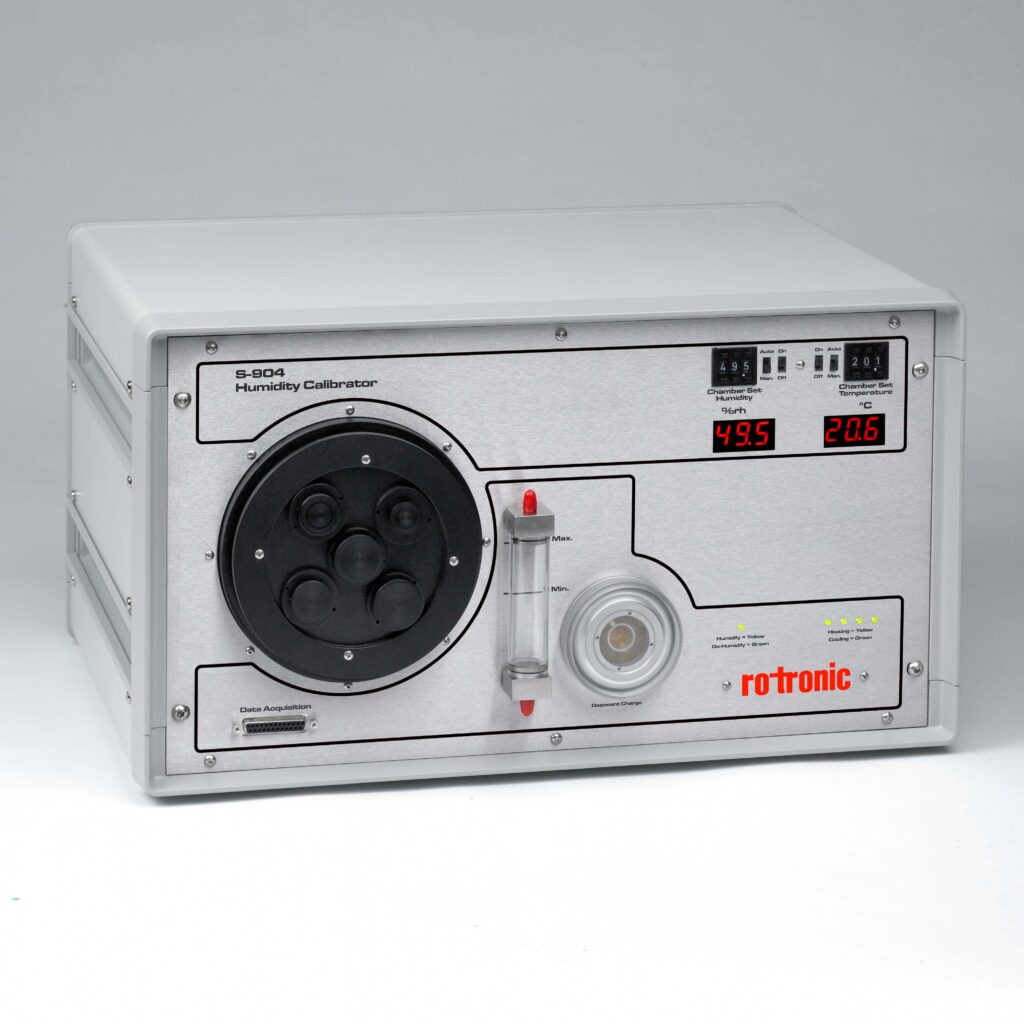

Cost Effective Humidity Validator - Rotronic S904
- Simple operation and maintenance
- Easy calibration of relative humidity sensors
- Excellent chamber stability and uniformity
- Manual control or optional straightforward automated set point programming
- Optional in-built data-logging for reference probe and probes under calibration
- Humidity and temperature-controlled chamber
- Generate 10 to 90% RH over +10 to +50°C temperature
- Transportable to allow on-site calibrations
High Precision Chilled Mirror Hygrometer – Michell S8000 -100
- Accuracy of ±0.1 °C (±0.18 °F)
- Precision measurement to -100 °C (-148 °F) frost point (13.8 ppbV) with no need for additional cooling
- Reproducibility of ±0.15 °C (±0.27 °Ffp) at -100 °C (-148 °Ffp) frost point
- Simple configuration and operation via touch screen interface
- Sensor optimized for fast response to low moisture levels
- External 4-wire Pt100 connections

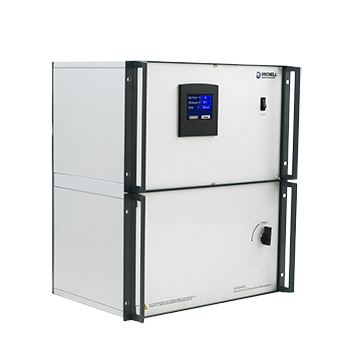

Advanced Dew-Point Generator – Michell ADG400
- Full-color touch-screen HMI
- 11-point factory programmed dew-point setpoint table from -80 °C to +20 °C at 10 °C intervals
- 13-point user programmable dew-point setpoint table
- 3 programmable 13-point automatic calibration profiles with customizable timings
- Change set points using serial commands via built-in USB port
- Remote Access mode allows HMI to be operated using a
connected PC

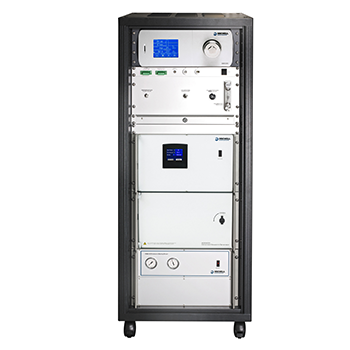

Dew-Point Calibration System - Michell DCS
- Complete dew-point calibration solution with optional compressor, dryer, dew-point generator, reference instrument and optional manifold
- Generated output responds quickly to a change of set point
- Stable humidity generation
- Simple operation through manual flow mixing or push-button switching of set points
- Remote control via RS232/USB comms (dependant on model)
DG2, DG3, ADG400 and VDS3 - Michell Dew-Point Generators
- Manual selection, touchscreen or computer control of generated dew point
- -100…+20 °C dew-point range capability, depending on model
- Precision flowmeter or mass flow controller operation
- High stability and repeatability
- Fast response to changes in set-point

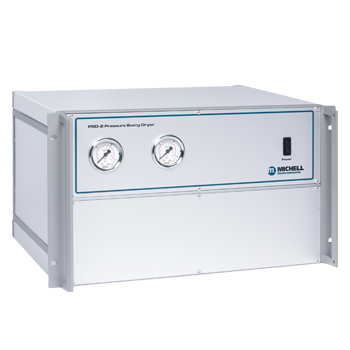

Dryers for Humidity Calibration Systems - PSD2 and PSD4
- Excellent long-term stability
- Maintenance free except for a desiccant change once every 5 years
- Completely self-contained
- Low power consumption
Trace Moisture Analyzers for Natural Gas Quality and Petrochemical Applications

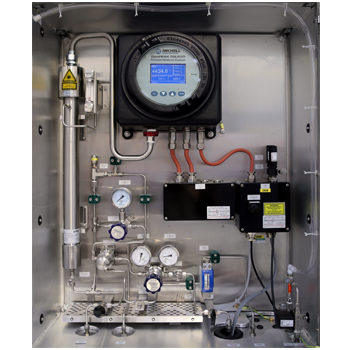

Moisture in Natural Gas Analyzer - Michell OptiPEAK TDL600
- D-MET system: Factory-ready for varying gas compositions. For example, after stream blending or injection of shale gas or biomethane to a network.
- Operating range down to 1 ppmV
- Sour gas compatible
- Simple installation and setup
- Lowest maintenance
- ATEX, IECEx, UKCA and cQPSus certified
- Integrated sample handling
- Proven Michell Instruments quality: 40 years’ expertise in moisture measurement built into the design

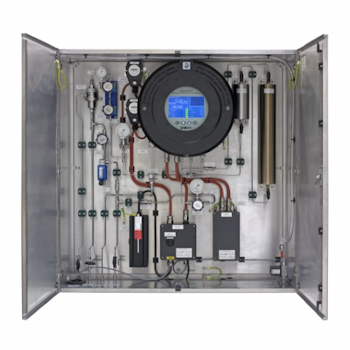

Process Moisture Analyzer - Michell QMA601
- Fast and reliable measurement from 0.1 to 2000ppmV
- Accuracy of ±0.1ppmV at <1ppmV and 10 % of reading from 1 to 2000ppmV
- Maintenance free for 3 years
- Built-in verification of customer process gas
- IECEx, ATEX, UKCA, TR CU Ex certified for Exd flameproof, cQPSus certified for explosion proof
- Intuitive color HMI with touch-screen keypad; no ‘hot work’ permit required
- 14 internal alarms
- 21 predefined carrier gases and 3 user-defined gases
- Proven Michell Instruments quality: 40 years of expertise in moisture measurement built into the design

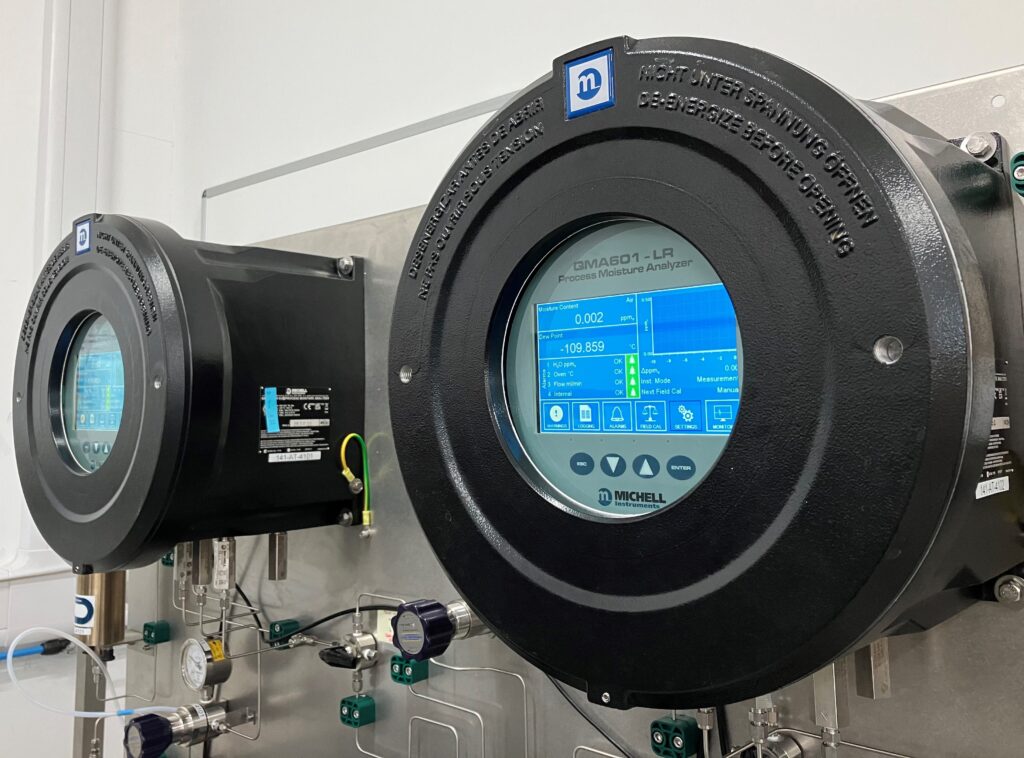

Low-Range Process Moisture Analyzer - Michell QMA601-LR
- Reliable low-range measurement from 0.02 to 100 ppmV
- Accuracy of ±0.03ppmV or 10 % of reading
- Maintenance free for 3 years
- Built-in verification of customer process gas
- IECEx, ATEX, UKCA, TR CU Ex certified for Exd flameproof, cQPSus certified for explosion proof
- Intuitive color HMI with touchscreen keypad; no hot works permit required
- 14 internal alarms
- 21 predefined carrier gases and 3 user-defined gases
- Proven Michell Instruments quality: 40 years’ expertise in moisture measurement built into the design
Process Moisture Analyzer Michell QMA601 Moisture in CO2 Analyzer
- Reliable measurement from 1 to 1000 ppmV with trending to 2000 ppmV
- Accuracy of 1 ppmV from 1 to 10 ppmV or 10 % of reading
- Calibration traceable to national standards
- Low cost of ownership
- Globally certified for use in hazardous areas, e.g. ATEX, IECEx and cQPSus
- Intuitive color HMI with touch-screen keypad; no ‘hot work’ permit required
- 14 internal alarms
- Proven Michell Instruments quality: 50 years of expertise in moisture measurement built into the design

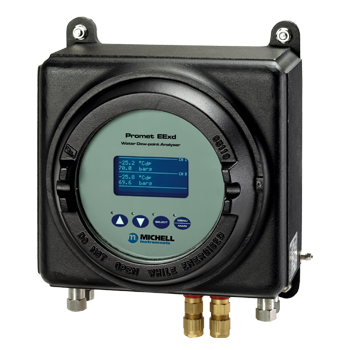

Process Moisture Analyzer - Michell Promet EExd
- EExd flameproof certified – IECEx, ATEX, UKCA, cQPSus and TR CU Ex
- Complete hazardous area installation
- Single- or dual-channel measurement
- Moisture content, dew point and pressure
- Calibration traceable to NPL (UK) and NIST (USA)
- Range -120…+30°Cdp (-184…+86°F), 0.001…30,000 ppmV
- Remote global access options
- Sour gas compatible
- Field calibration maintenance

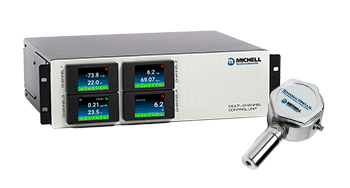

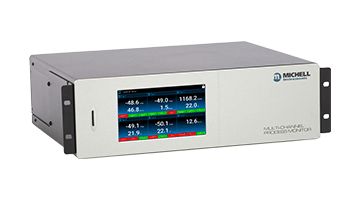

Process Moisture Analyzer Michell Multi-Channel Process Monitor
- Enhanced functionality 6-channel capable process monitor, utilizing a single 7” touchscreen HMI
- Provides up to six independent measurement channels with any combination of moisture in gas, moisture in liquids or oxygen
- 7” color touchscreen LCD, displaying moisture content/dew point or O2 and analysis pressure, with configurable, on-display, tag names/numbers
- Integrated galvanic isolation-type barriers
- Three 4…20 mA configurable outputs per channel
- Modbus RTU over RS485 and Modbus TCP/IP communication
- Alarm indicators based on the NAMUR 102 standard
- Two alarm relays with user-programmable set points per channel, with additional system alarm
- Data logging to SD card, including measurement parameters and error codes
Process Moisture Analyzer - Michell Promet I.S
- Reliable low-range measurement from 0.02 to 100 ppmV
- Accuracy of ±0.03ppmV or 10 % of reading
- Maintenance free for 3 years
- Built-in verification of customer process gas
- IECEx, ATEX, UKCA, TR CU Ex certified for Exd flameproof, cQPSus certified for explosion proof
- Intuitive color HMI with touchscreen keypad; no hot works permit required
- 14 internal alarms
- 21 predefined carrier gases and 3 user-defined gases
- Proven Michell Instruments quality: 40 years’ expertise in moisture measurement built into the design
Process Moisture Analyzer Michell QMA601 Moisture in CO2 Analyzer
- Reliable measurement from 1 to 1000 ppmV with trending to 2000 ppmV
- Accuracy of 1 ppmV from 1 to 10 ppmV or 10 % of reading
- Calibration traceable to national standards
- Low cost of ownership
- Globally certified for use in hazardous areas, e.g. ATEX, IECEx and cQPSus
- Intuitive color HMI with touch-screen keypad; no ‘hot work’ permit required
- 14 internal alarms
- Proven Michell Instruments quality: 50 years of expertise in moisture measurement built into the design

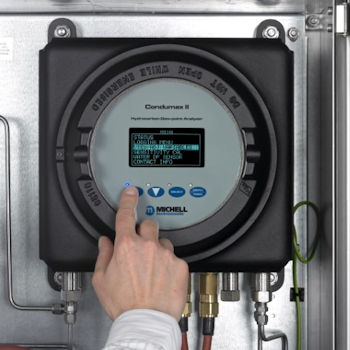

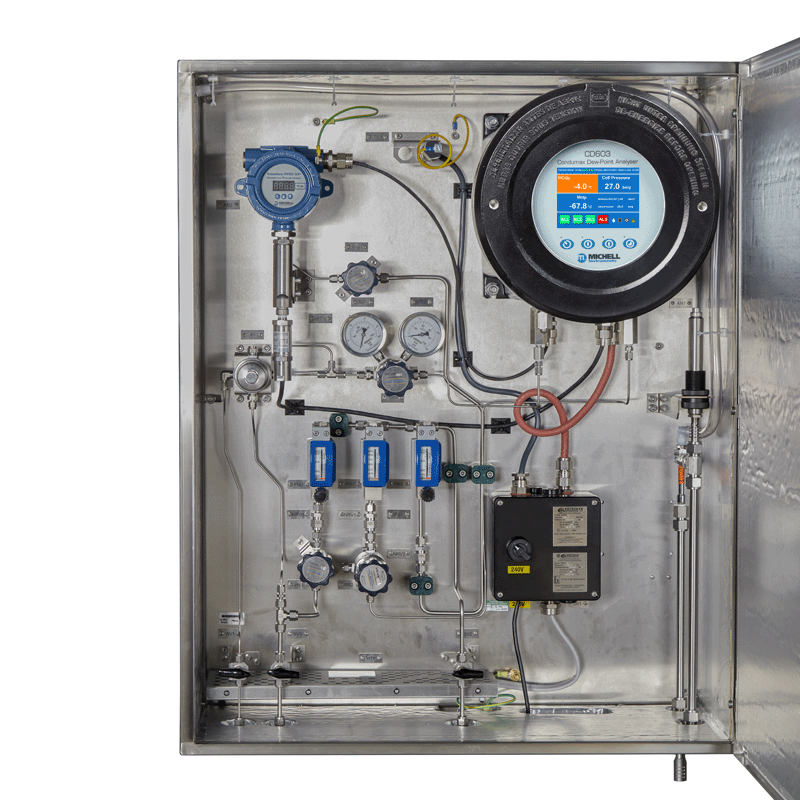

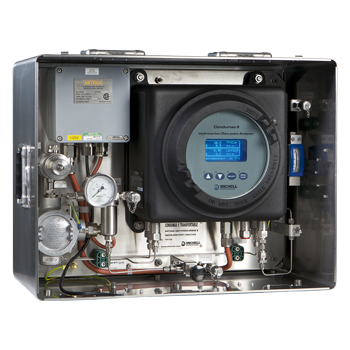

Hydrocarbon Dew-Point Analyzers for Natural Gas
Process Moisture Analyzer - Michell Promet EExd
- Fundamental cooled-/chilled-mirror dew-point measurement principle
- Fully automatic identification of both water and hydrocarbon dew point
- Greater than 65 ˚C (117 °F) measurement depression range
- ±0.5 ˚C (±0.9 °F) hydrocarbon dew-point accuracy
- IECEx, ATEX, cQPSus and UKEX certifications
- 100 barg (1450 psig) operating pressure rating
- 3 x 4…20 mA user-configurable outputs
- 1 x system alarm, 3 x process alarms, selectable for all measurement parameters
- Modbus RTU or TCP/IP interface
Hydrocarbon Dew-Point Analyzer - Michell Condumax II
- Fully automatic on-line analysis
- Objective, highly repeatable measurements
- 0.5 °C hydrocarbon dew-point accuracy
- Fundamental chilled mirror principle
- Patented detection technique
- Self-cleaning
- No purge or cooling gas required
- Optional water dew-point analysis
- Modbus RTU
- IECEx, ATEX, UKCA, cQPSus and GOST Ex certifications
Hydrocarbon Dew Point Analyzer - Condumax II Transportable
- Field transportable self-contained dew-point analyzer system
- Simultaneous HC and water dew-point measurements in a single analyzer
- Automatic objective measurements by industry proven principles
- Parameter specific sensors ensure continuity of HC and water dew-point readings
- Self-contained sample handling, conditioning and analysis package
- 0.5°C HC dew-point accuracy
- Fundamental cooled mirror principle

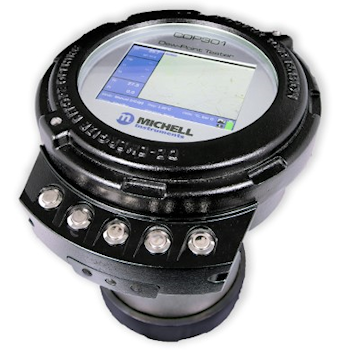

Portable Dew-Point Tester – Michell CDP301
- Fundamental cooled-/chilled-mirror dew-point measurement principle
- High-definition color LC display
- Visual identification of both water and hydrocarbon dew point
- Automatic mirror cooling rate control according to ISO 6327 and ASTM D1142 test methods for natural-gas dew-point measurements
- Self-contained, rechargeable battery powered
- Exd certified IECEx ATEX UKCA Zone 1 IIB+H2 T3
- 100 barg operating pressure rating
- Greater than 60˚C measurement depression range (up to 100 barg pressure)
- Better than +/-0.5˚C accuracy of mirror surface measurement
Moisture in Hydrocarbon Liquid Analyzers
Transmitter for Moisture Analysis - Michell Easidew PRO I.S.
- Measurement range –110…+20 °Cdp
- ATEX, IECEx, UKCA, cQPSus, TR CU Ex certified
- Accuracy ±1 °Cdp
- 2-wire 4…20 mA output
- Traceable 13-point calibration certificate
- 450 barg pressure rating
- Alternative process connections available
- Material certification to BS EN 10204 3.1
- Moisture in gases and liquids
- Service exchange program
- Oxygen Service cleaned
Explosion Proof Moisture Transmitter - Easidew PRO XP
- Measurement ranges -110 up to +20 °Cdp (-166 to 68 °Fdp)
- Global explosion / flameproof certification
- Accuracy ±1 °Cdp (±1.8 °Fdp)
- 2-wire 4…20 mA output
- Traceable 13-point calibration certificate
- 450 bar (6527 psi) pressure rating
- Low cost of ownership and easy maintenance with sensor
exchange program - 3/4” UNF industry standard process connection
- EN 10204 3.1 material certification
- Moisture in gases and liquids
- Integral display meter
- Oxygen service cleaned
Process Sampling System - Michell ES70
- Indoor panel or outdoor enclosure mounting options
- Process connection via 6mm or 1/4” tube fittings
- High quality components, stainless steel tubing and fittings
- Sample inlet pressure up to 138 barg
- Flexible filtration options
- Choice of transmitter, flow and pressure control
- Comprehensive documentation options with BS EN 10204 3.1 certification and NACE MR0175 available

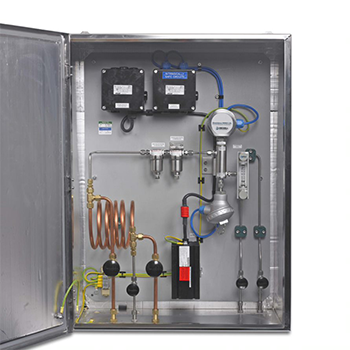

Moisture in Liquid Analyzer - Michell Liquidew I.S.
- Simple, cost-efficient operation and low maintenance
- Retrofit functionality, easy to integrate into existing sampling or distribution systems
- High integrity moisture in liquid measurement from 0.01 ppmW to saturation point
- Multi-channel with up to four completely independent measurement channels
- Robust design for undisturbed operation in many non-polar liquids over a long time
- Three 4…20 mA configurable outputs and digital Modbus RTU-based communication
